Texray MasterPeace ERPD

Texray MasterPeace Radiation Shielding System, is a Textile-Based Enhanced Radiation Protection Device (ERPD).
Next Generation Radiation Protection.

EVIDENCE-BASED DESIGN

FOR ENHANCED DURABILITY, COMFORT AND SAFETY

Texray MasterPeace Shielding System is an Enhanced Radiation Protection Device (ERPD) designed to significantly reduce radiation exposure for medical professionals in the Cath lab.

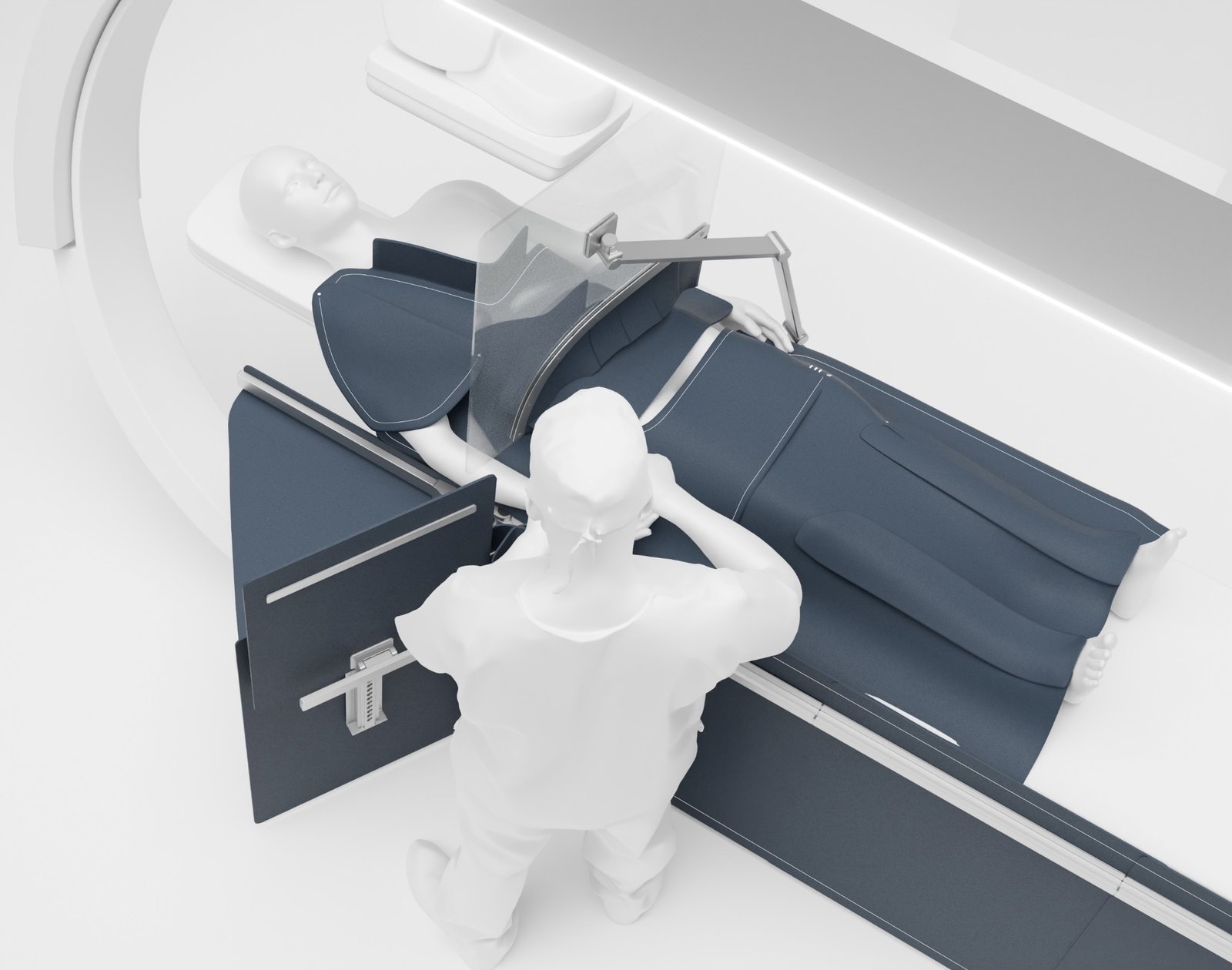

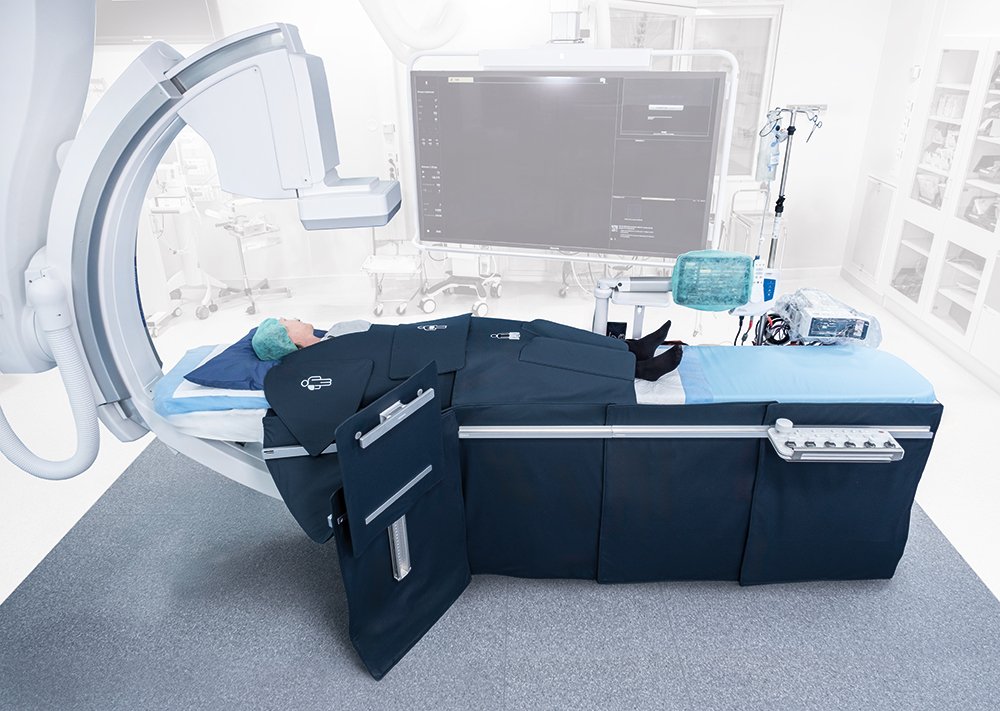

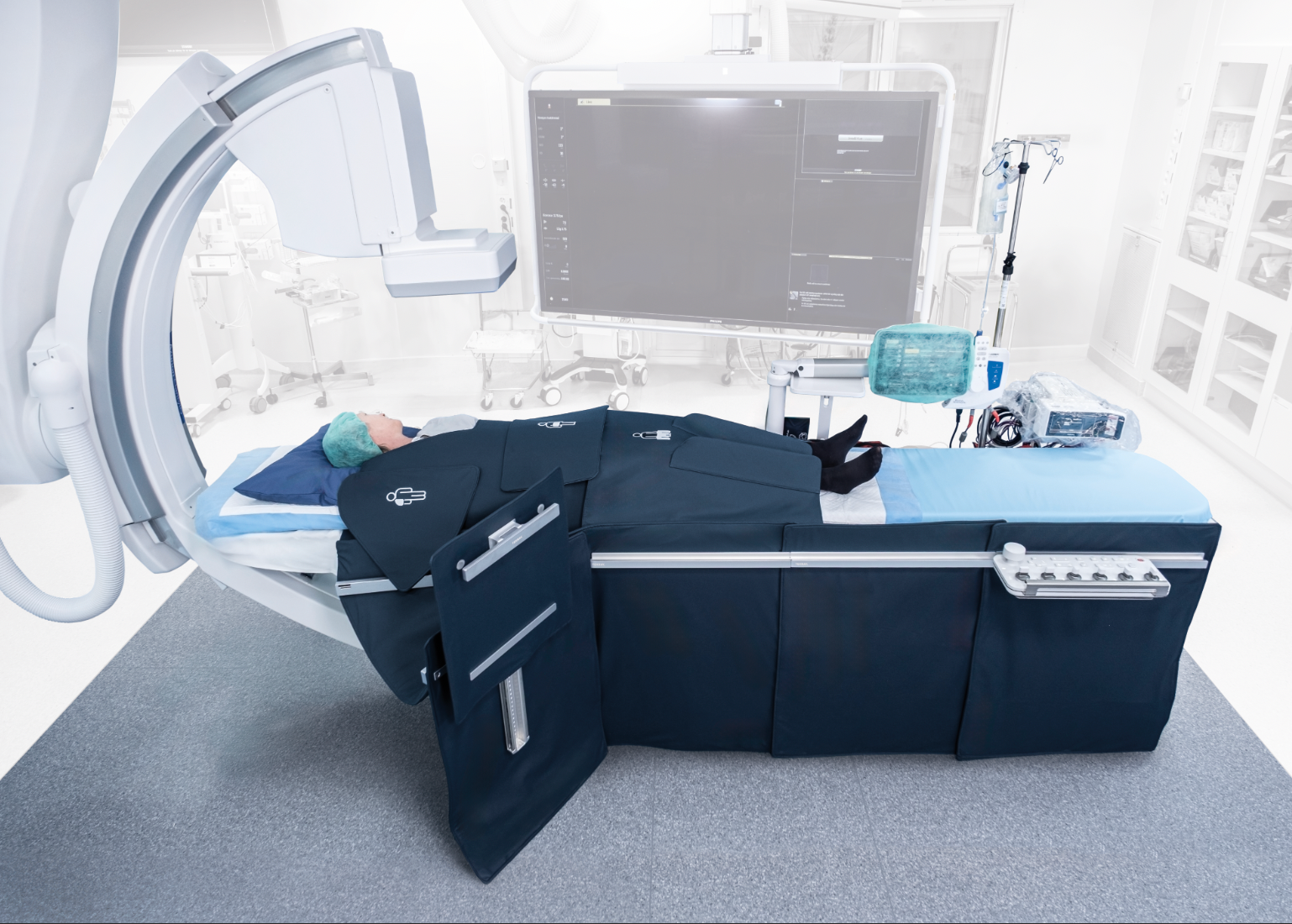

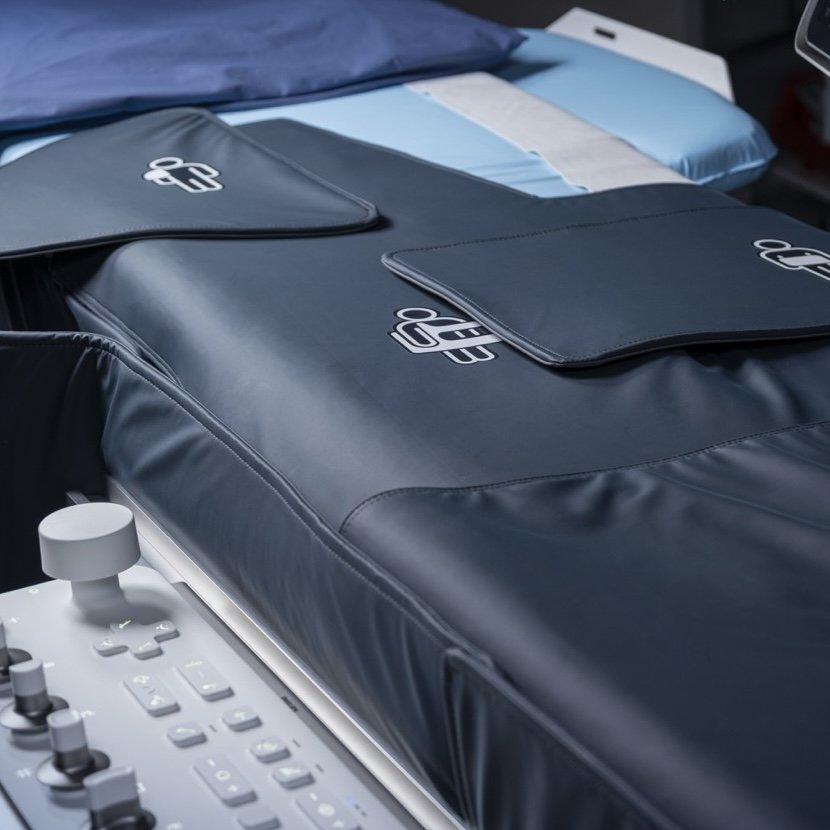

The system consists of Modular Patches that are draped over the patient to reduce scatter radiation. The patches are designed for simplicity and to avoid interfering with the clinical workflow or obstructing the field of view. The Femoral Patch is placed in a sterile pouch to allow flexibility during the procedure.

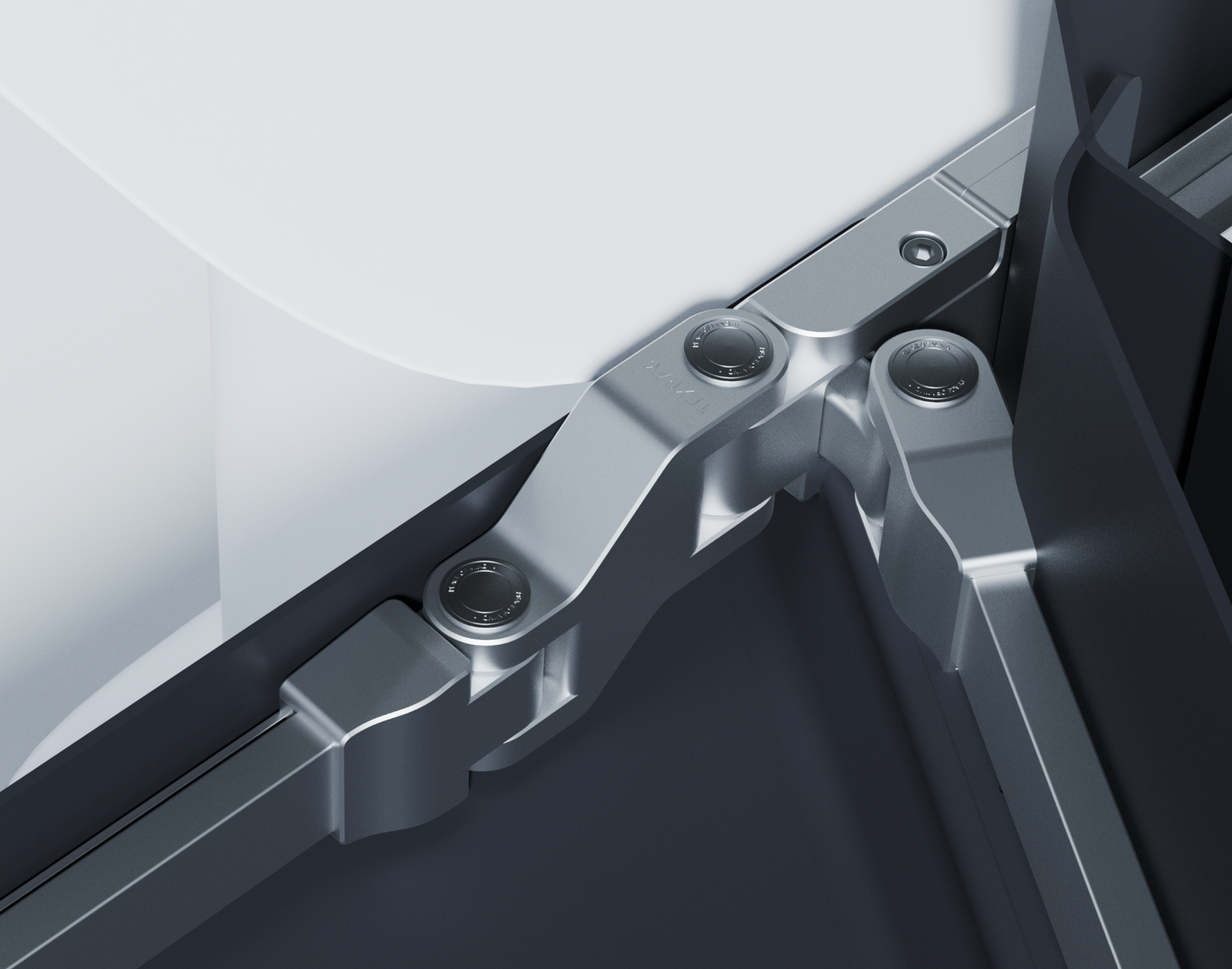

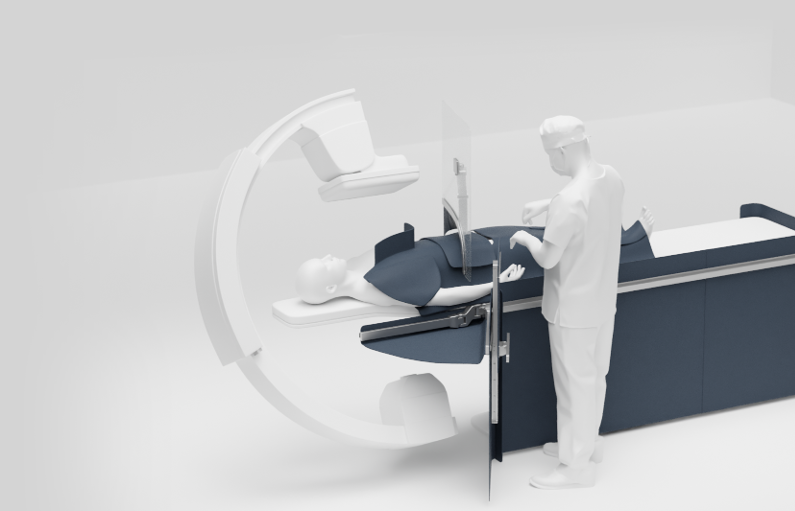

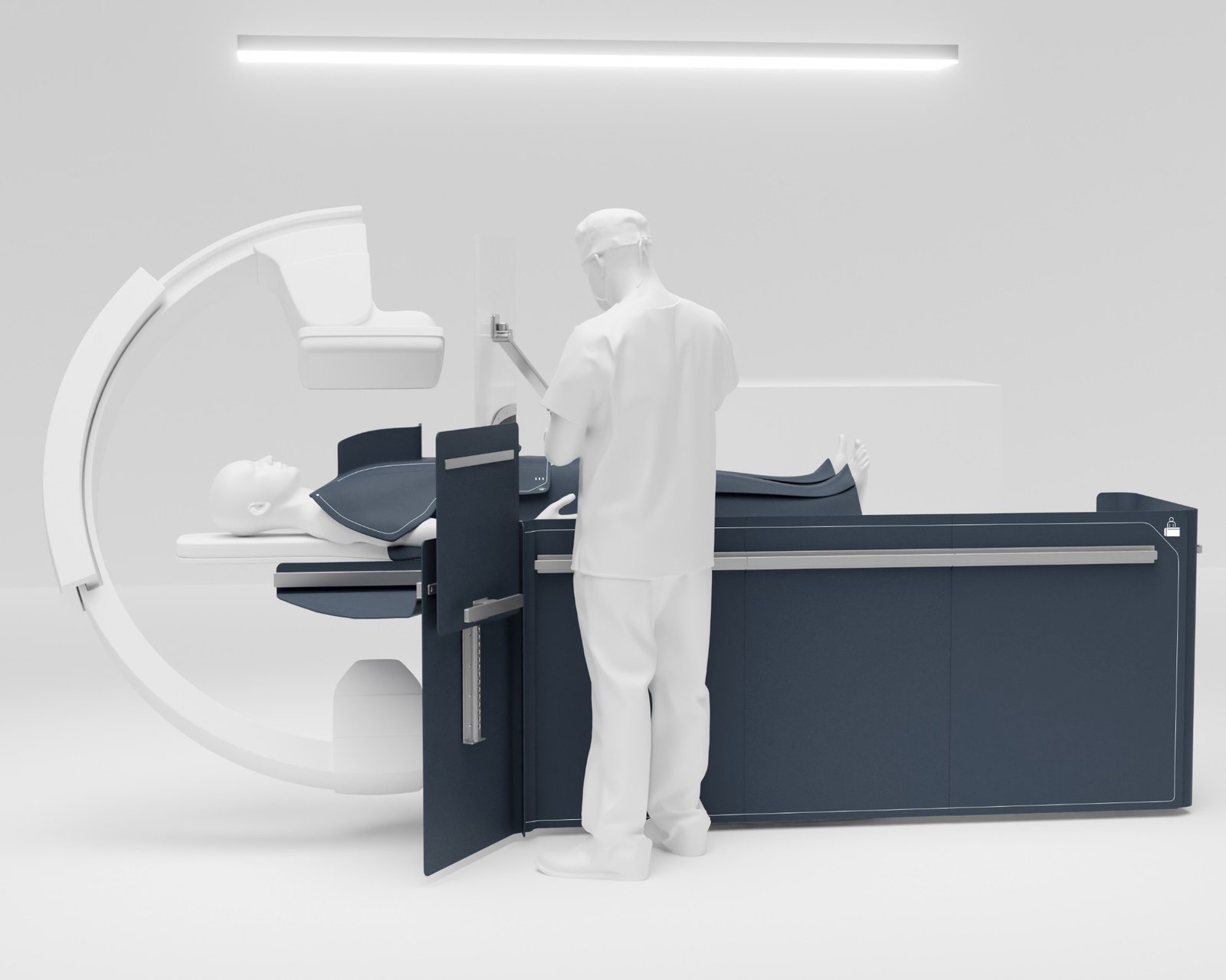

The Table-Mounted Shields are horizontal and vertical and positioned along the table rail. With a unique design, they will not interfere with the gantry.

THE DETAILS

  • INTEGRATION IN CLINICAL ENVIRONMENT ¹-²
    Compatible with existing equipment; no added patient prep time, no added procedure time.
    Table-mounted shields, minimal gantry interference.
    Zero-floor fill, no need for ceiling retrofit.

  • PROCEDURAL ACCESS²
    Modular patches draped on the patient, not in the field of view.
    Effective patient management with maintained workflow.
    Procedural access even during acute procedural complications.

  • RADIATION PROTECTION FOR THE TEAM³′⁴
    Demonstrated efficiency across multiple angular projections and operator heights.
    The first randomized controlled study to incorporate multi-point dosimetry (69 TLDs), with results that support the freedom to choose a lead-free alternative.

REFERENCES

1. Gellerstedt, F., Apell, P., & Haskal, Z. J. (2025). Textile-based radiation protection for staff during fluoroscopy-guided interventions: enhancing durability, comfort, and safety. CVIR Endovascular.

2. Angerås, Maintaining Radiation Protection During Complication Management: A Case Report Using the Texray MasterPeace™ System in Complex PCI, Sahlgrenska University Hospital, Gothenburg, Sweden, Presented at TCT 2025
3. Bärenfänger, F., Bartal, G., Hidefjäll, P., Gellerstedt, F., Apell, P., & Rohde, S. (2025). Evaluation of a Novel Enhanced Radiation Protection Device in Interventional Neuroradiology: A Phantom Study. Clinical Neuroradiology, 1-9.
4. Angerås, O., Jonasson, P. I., Dworeck, C., Friberg, G., Ioanes, D., Louca, A., … & Råmunddal, T. (2026). Randomized Evaluation of a Textile-Based Enhanced Radiation Protection Device Versus Control Shielding in the Cardiac Catheterization Laboratory. Journal of the Society for Cardiovascular Angiography & Interventions, 105523.
